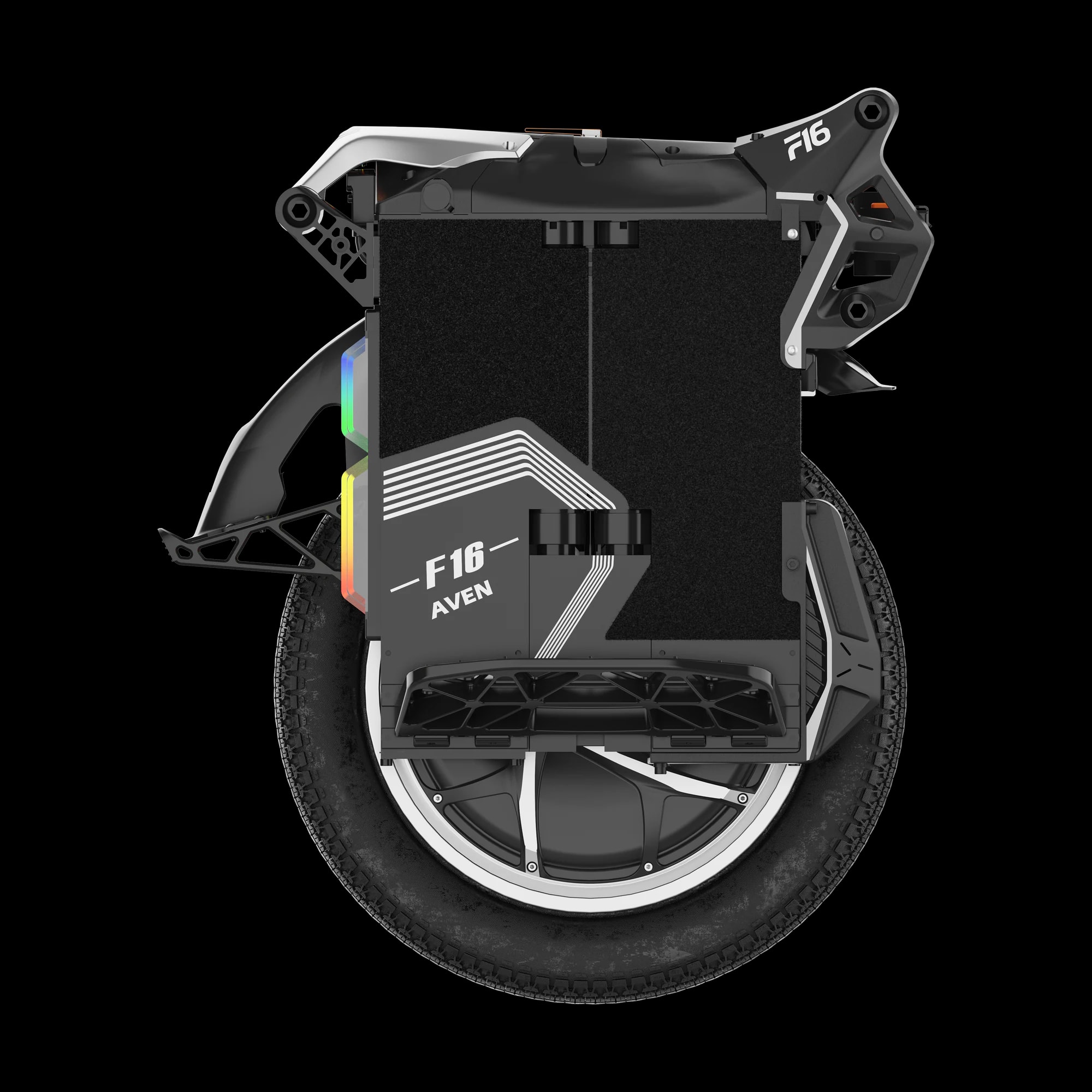

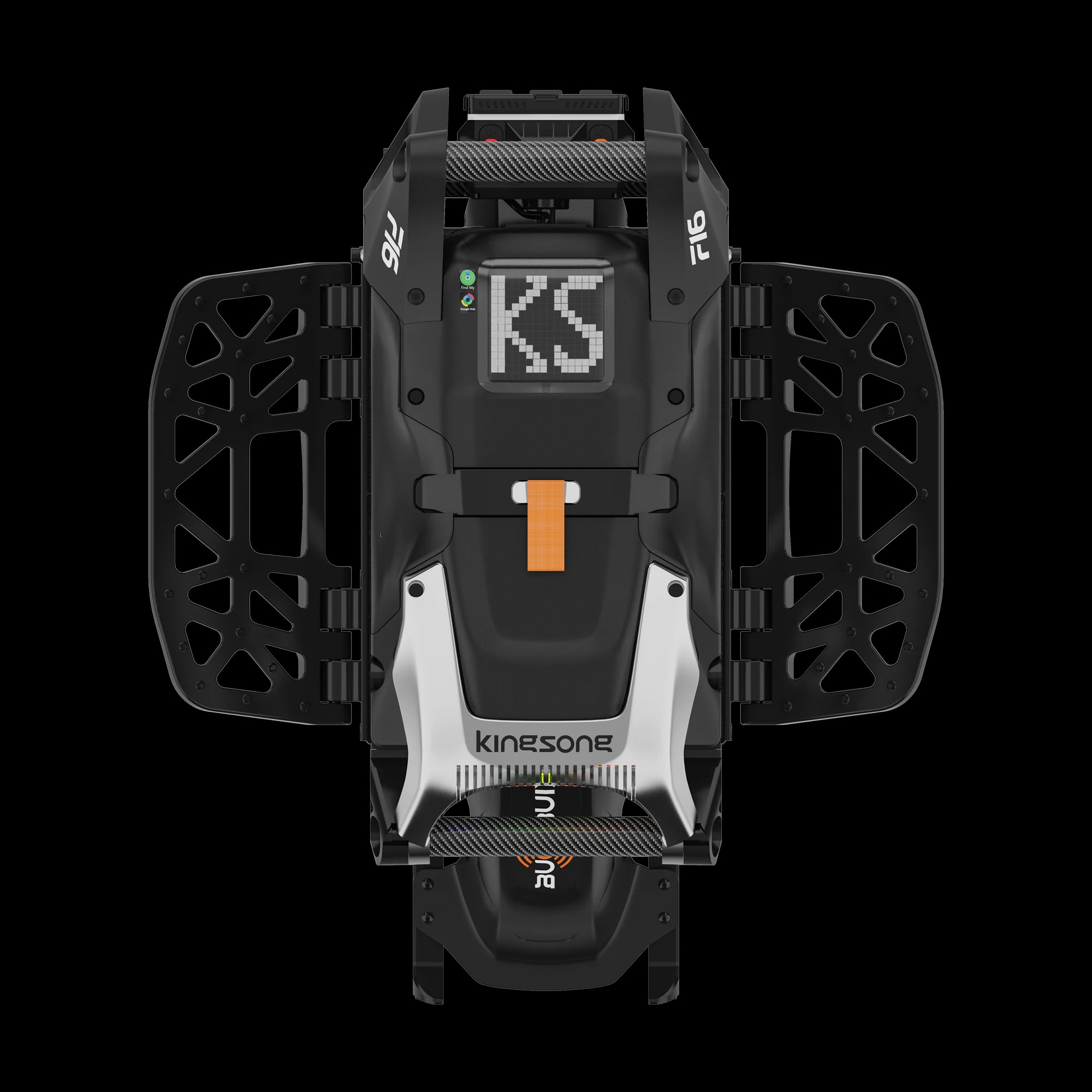

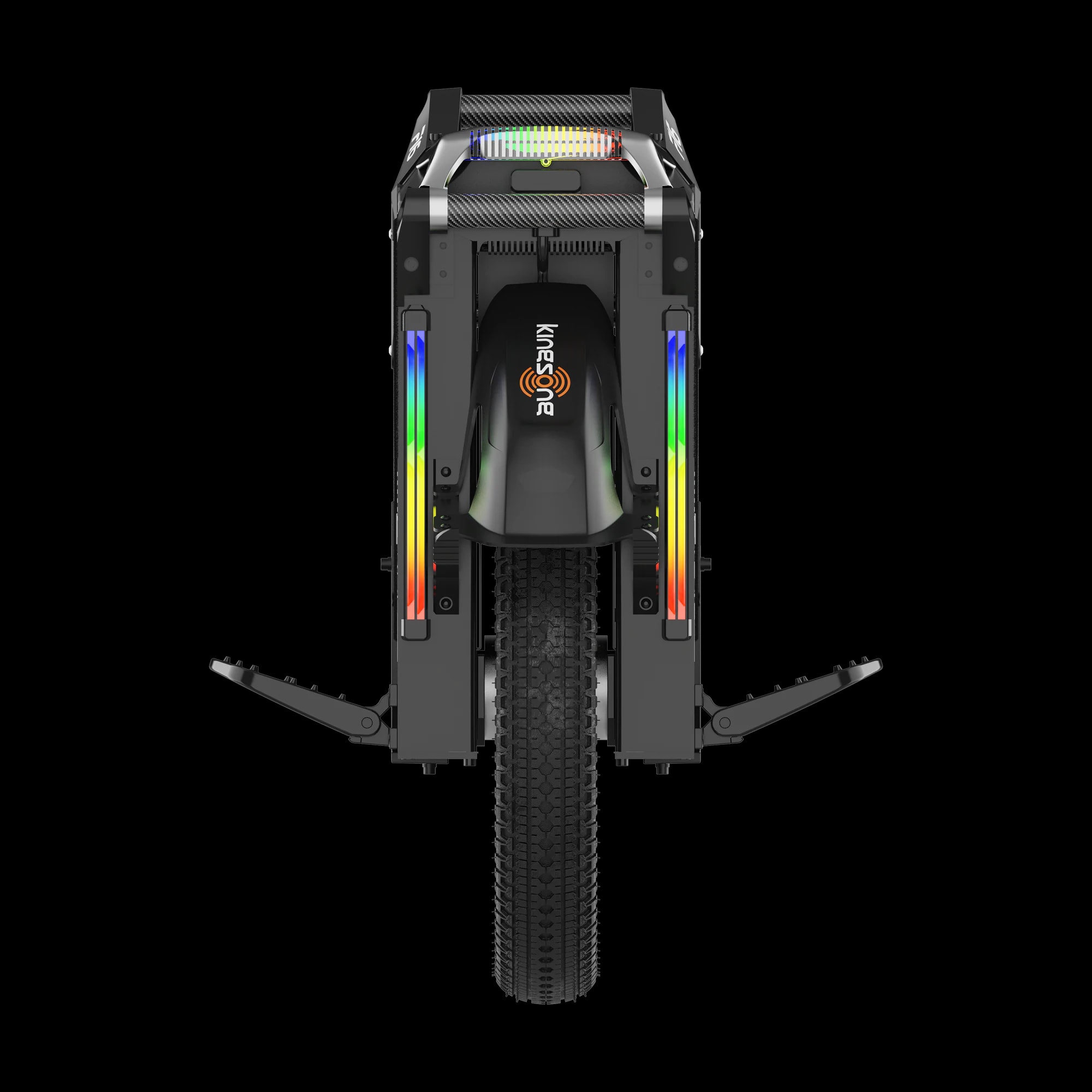

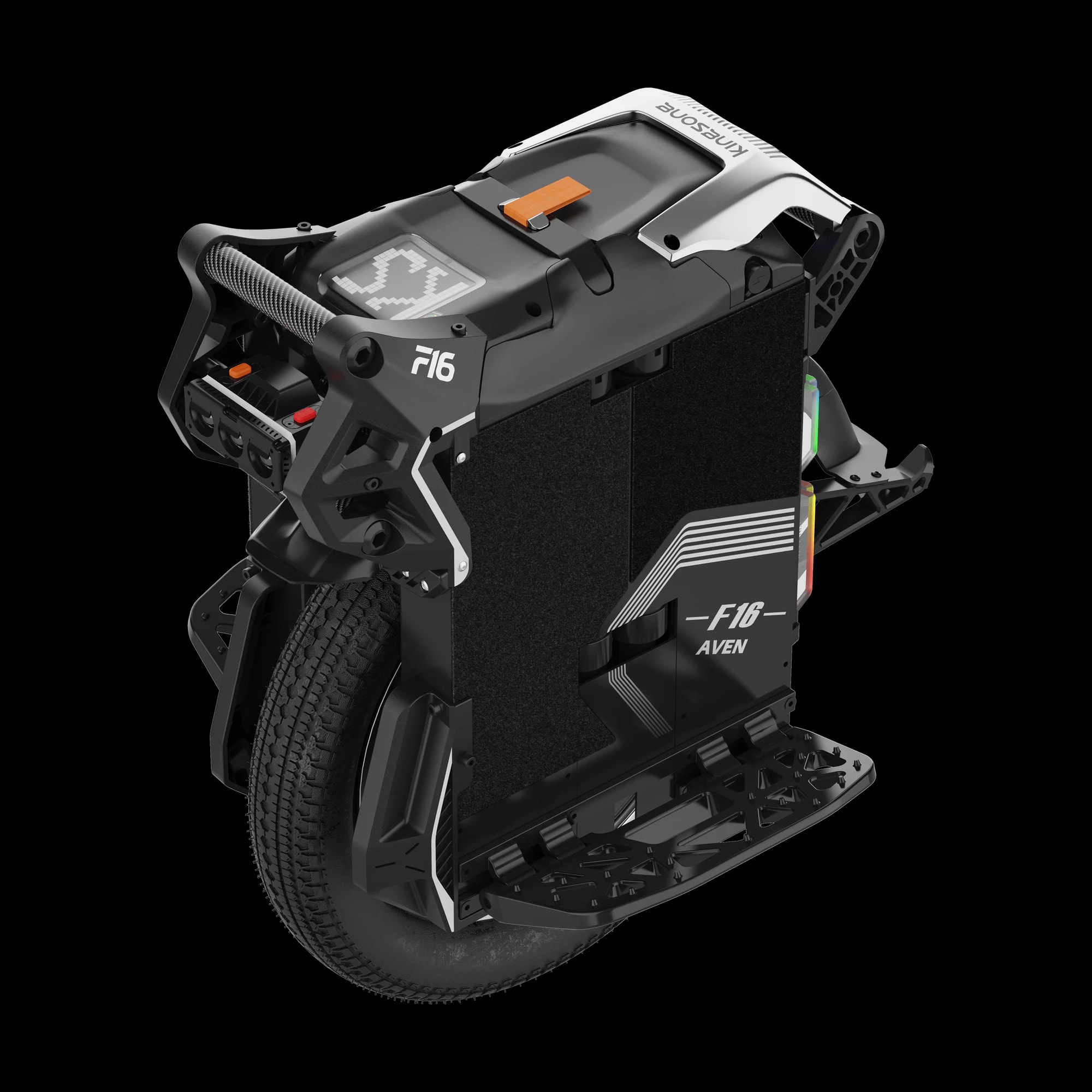

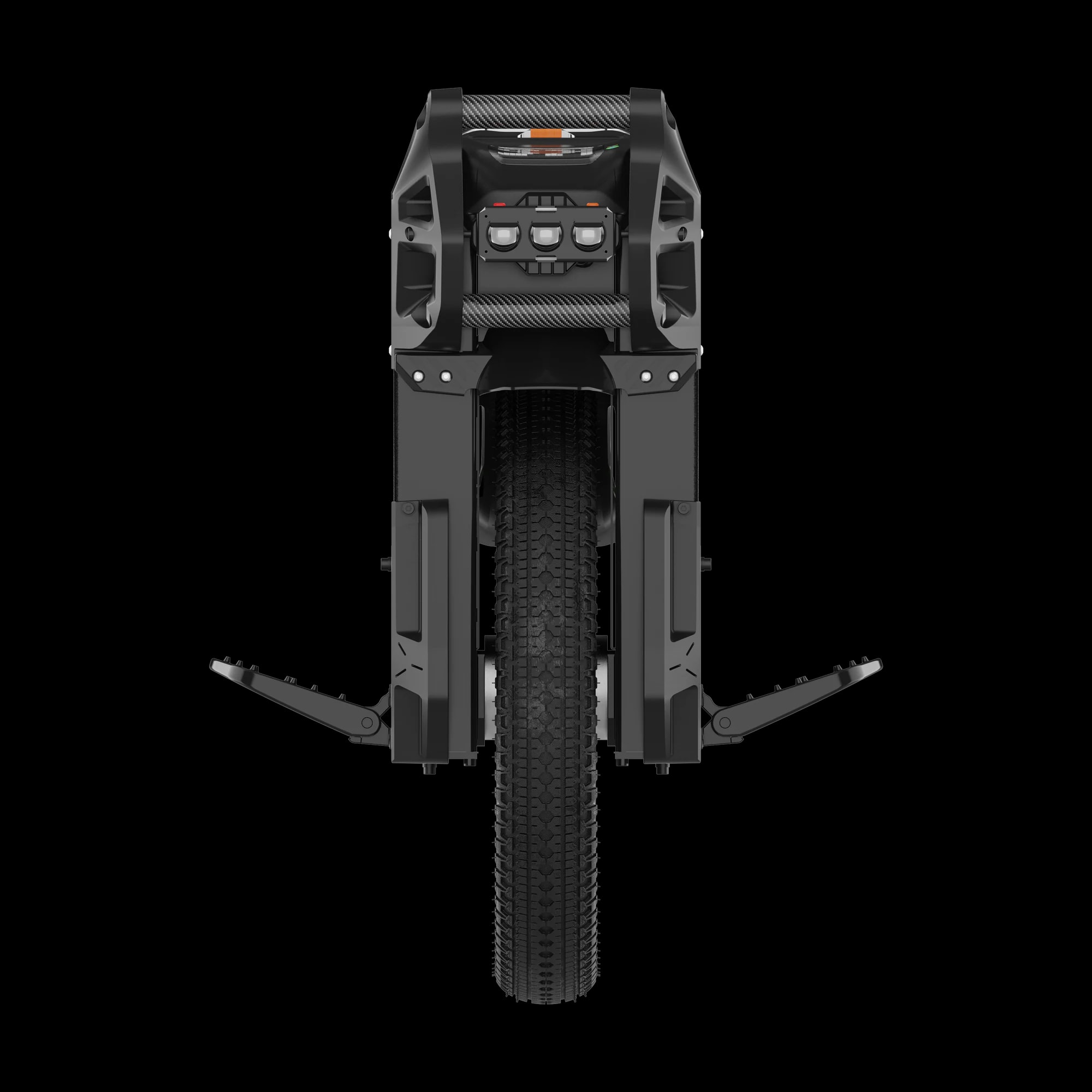

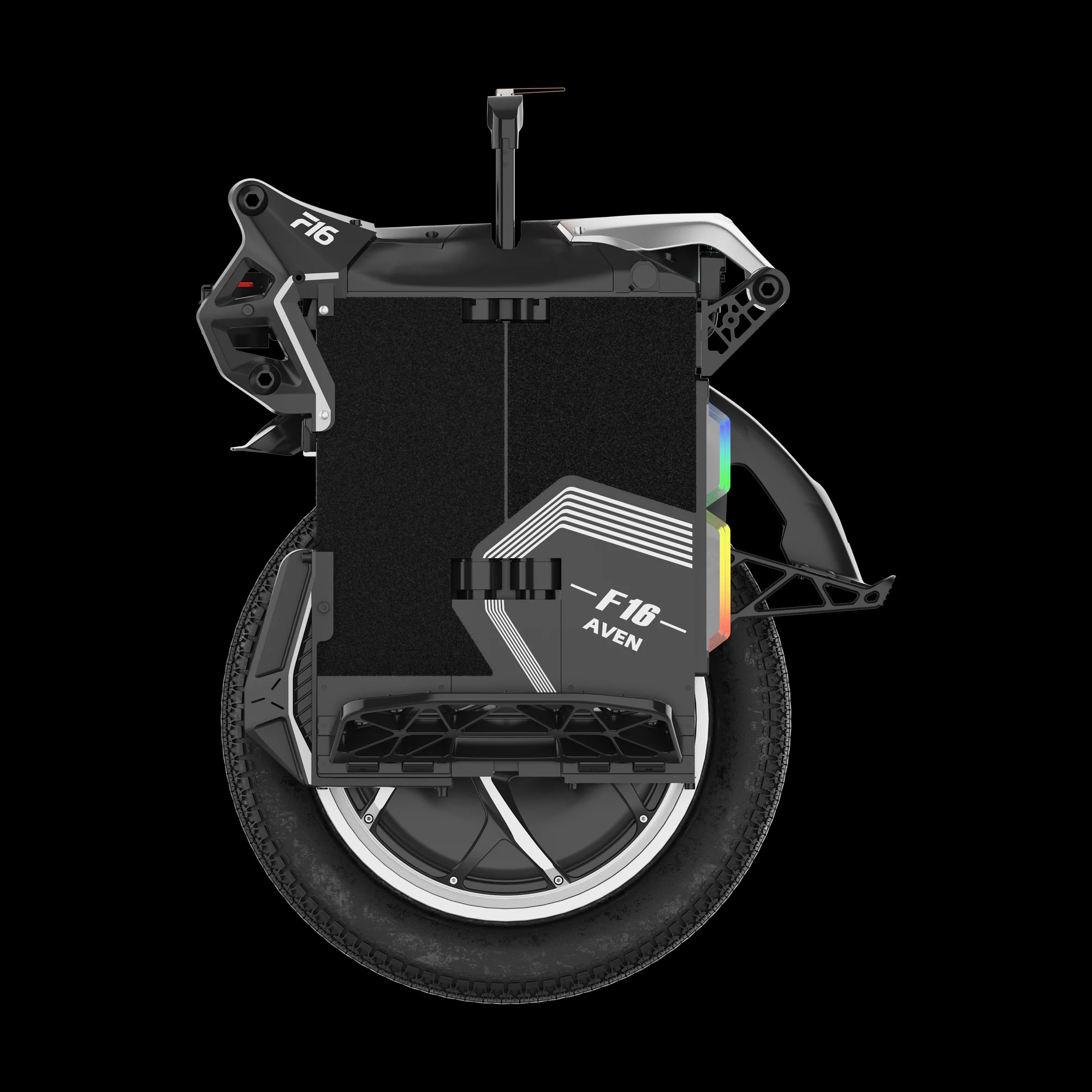

The F16 AVEN is the smallest member of KingSong's F-series and the first 16-inch wheel in the range built around the 126 V platform. It pairs a 2220 Wh Samsung 50S battery in four independent packs with a 3500 W hollow-shaft motor (9400 W peak), an 18-MOSFET controller on an aluminum-substrate driver board, and a four-point DNM spring-and-air suspension with 70 mm of frame travel.

The quick-release motor and modular electronics introduced on the F18 are carried over, so tire and service work stays quick. The brief: the power reserve and tuning of a large F-series wheel, in a body 28 cm wide that changes direction the way a 16-inch wheel should.

Where it sits in the KingSong range

• S16 Pro — 84 V, 1480 Wh, 3000 W, 88 mm single-spring suspension, 31.8 kg. The accessible 16-inch suspension wheel.
• F16 AVEN — 126 V, 2220 Wh, 3500 W, 70 mm four-point suspension, 37.7 kg. The performance 16-inch wheel.
• F18 — 151 V, 2664 Wh, 5000 W, 100 mm four-point suspension, 41 kg. The all-terrain flagship.

Key features

• 126 V high-voltage powertrain (111 V nominal) for more headroom under a heavy rider and on climbs
• 2220 Wh battery from 120 Samsung INR21700-50S cells in a 30s4p layout, four independent magnesium-alloy battery boxes
• 3500 W rated hollow-shaft motor, 9400 W peak, over 170 N·m torque (manufacturer figures)
• Quick-release motor and modular control, lighting and switch boards for fast tire and service work
• Four-point DNM suspension, spring plus air, 70 mm frame travel, adjustable rebound, compression damping and spring preload
• 16 × 3.0 in (3.0-12) tire
• Wide 277 × 130 mm pedals with adjustable height and angle; flat side panels for aftermarket pads
• Smart BMS with balancing, overcharge, over-discharge, overcurrent, short-circuit and temperature protection
• OTA firmware updates for mainboard, display and BMS
• Apple Find My and Google Find Hub tracking; phone-proximity lock and unlock
• Adjustable side-tilt cutoff and three selectable lift-up cutoff modes
• 30 W dual-color headlight with automatic brightness, RGB tail and side lighting with brake and turn signals
• Dual GX16-6 charge ports, up to 10 A combined; USB-C 5 V/2 A output
• Carbon-fiber front and rear handles, center-mounted three-section trolley handle, integrated kickstand
• IPX6-rated battery packs; sealed mainboard compartment

Performance and ride experience

Range

KingSong quotes about 110 km, measured with a 60 kg rider at a constant 20 km/h on flat ground. For a typical adult riding at normal road speeds, plan on roughly 75–90 km in mixed conditions; trails, cold weather and sustained high speed pull it down.

Power and speed

The 126 V system is about margin more than top speed. A 3500 W rated motor with 2220 Wh behind it keeps the pedals firm on long climbs and hard launches where an 84 V wheel starts to soften. KingSong lists an approximate top riding speed of 80 km/h; the "100+ km/h" figure in the spec sheet is the motor's no-load free-spin, not a riding speed. Speed alarms and pedal tilt-back are adjustable, and the wheel stays limited for the first 5 km.

Suspension

Four DNM units combine coil springs with an air chamber, so sag can be set by rider weight and then fine-tuned with rebound and compression knobs. The 70 mm of travel is tuned for broken pavement, cobbles, gravel and light trail; riders who jump or hit large drops should look at the F18's 100 mm.

Handling

The 16-inch geometry and 3.0-inch tire make it quick to place and settled in corners. At 37.7 kg it is heavy for its size; it rides lighter than it lifts, but stairs and car loading need a plan. The trolley handle and kickstand help around the ride, not during it.

Charging

The included 126 V / 5 A charger fills the pack in about 4–5 hours. With a second compatible 5 A charger on the other port, charging time drops to about 2–3 hours.

Serviceability

The motor releases from the frame in minutes for tire changes, and the control board, display, lights and switch are separate modules. The 3.00-12 tire format has street, hybrid and off-road options.

Pros & Cons

Who is this wheel for?

• Experienced riders who want a compact, agile wheel with real climbing and range reserve
• Mixed-terrain daily riders: broken city streets, gravel, light singletrack
• KingSong S16 Pro or Patton-class owners who keep running into their wheel's power ceiling

Not the right choice for beginners, for riders who carry their wheel up stairs every day, or for technical trail riding with big drops, where the F18 has the travel and the load rating.

Final thoughts

The F16 AVEN gives 16-inch riders the parts that were previously reserved for KingSong's larger wheels: a 126 V, 2220 Wh pack, a 3500 W motor and tunable four-point suspension, plus the quick-release motor that makes F-series ownership easy to live with. The cost is weight and a modest 70 mm of travel, and as a new model its first owner reports are still to come. If you ride a 16-inch wheel because of how it handles but want power that does not run out on hills, this is the most capable compact wheel KingSong has built.
